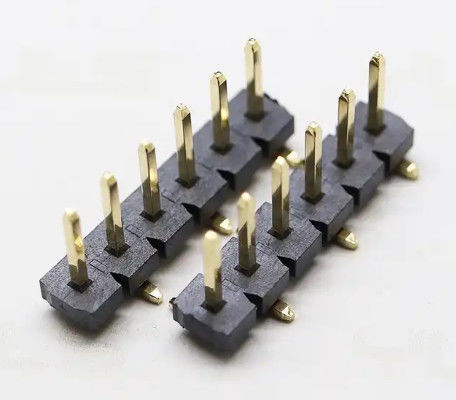

Pitch 3.96mm Height 3.2mm 2-20 Pin Board To Board Connector SMT 500V AC
  • Pitch 3.96mm Height 3.2mm 2-20 Pin Board To Board Connector SMT 500V AC
  • Pitch 3.96mm Height 3.2mm 2-20 Pin Board To Board Connector SMT 500V AC
  • Pitch 3.96mm Height 3.2mm 2-20 Pin Board To Board Connector SMT 500V AC
Place of Origin China
Certification ISO9001, IATA16949, ISO14001
Minimum Order Quantity 1000 pcs
Packaging Details tube, tape and reel,
Delivery Time 2 weeks
Supply Ability 10k daily capacity
Product Details
Pastic Housing LCP+30%G.F UL94V-0 Contact Material Brass, Phosphor Bronze
Current Rated 7A Temperature Range -40-+105 Degree
Withstanding Voltage 500V AC Plating Tin Or Gold Plated
Highlight

Pitch 3.96mm smt connector

,

height 3.2mm board to board connector smt

,

smt connector 500V AC
Product Description

Pitch 3.96mm height 3.2mm positions 2-20 pin header Double Plastic single row LCP Pin header smt connector



Specification
item
value
Model Number
1732-21XXXXXDMXXXXX
Type
connectors
Place of Origin
China

Guangdong
Brand
NA
Application
PCB
Color
Black
Material
LCP
Product name
3.96mm pin header Single row smt
Color
Black
Rubber core
LCP+30%G.F UL94V-0
Rated Current
7 AMP
Contact resistance
20mΩ MAX
Insulation Resistance
1000MΩ Min
Withstand Voltage
500V AC
Temperture Range
-40℃to +105℃
Contact
Brass/0.8u MIN
Plating
Brass/nickel/gold plated surface



Pitch 3.96mm Height 3.2mm 2-20 Pin Board To Board Connector SMT 500V AC 0
